Chapter 4 Analog & PWM

In previous study, we have known that one button has two states: pressed and released, and LED has lighton/off state, then how to enter a middle state? How to output an intermediate state to let LED “semi bright”? That’s what we’re going to learn. First, let’s learn how to control the brightness of a LED.

Project 4.1 Breathing LED

Breathing light, that is, LED is turned from off to on gradually, and gradually from on to off, just like “breathing”. So, how to control the brightness of a LED? We will use PWM to achieve this target.

Component List

ESP32-S3-WROOM x1
GPIO Extension Board x1
830 Tie-Points Breadboard x1
LED x1
Resistor 220Ω x1
Jumper Wire x2

Connect

This circuit is the same as the one in engineering Blink.

Sketch

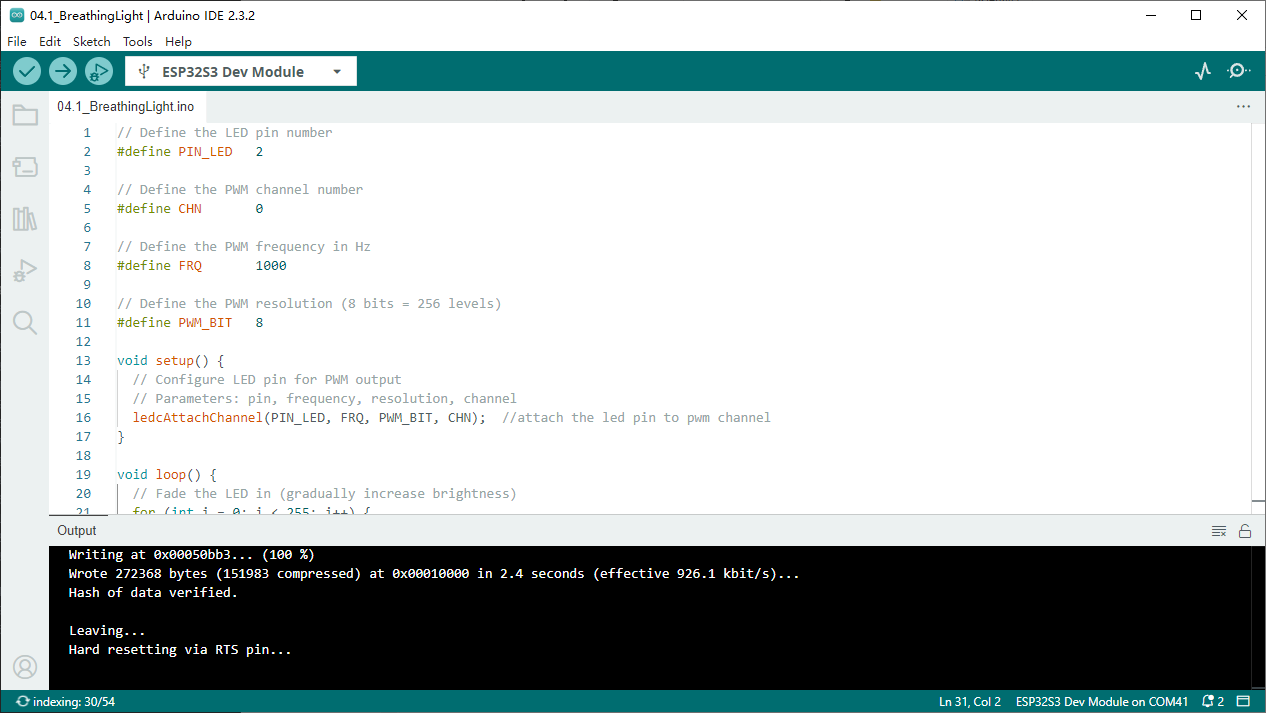

Upload following sketch: LAFVIN_Super_Starter_Kit_For_Esp32_S3\Sketches\04.1_BreathingLight

This project is designed to make PWM output GPIO2 with pulse width increasing from 0% to 100%, and then reducing from 100% to 0% gradually.

Download the code to ESP32-S3 WROOM, and you’ll see that LED is turned from on to off and then from off to on gradually like breathing.

Code

The following is the program code:

// Define the LED pin number
#define PIN_LED   2

// Define the PWM channel number
#define CHN       0

// Define the PWM frequency in Hz
#define FRQ       1000

// Define the PWM resolution (8 bits = 256 levels)
#define PWM_BIT   8

void setup() {
// Configure LED pin for PWM output
// Parameters: pin, frequency, resolution, channel
ledcAttachChannel(PIN_LED, FRQ, PWM_BIT, CHN);  //attach the led pin to pwm channel
}

void loop() {
// Fade the LED in (gradually increase brightness)
for (int i = 0; i < 255; i++) {
    ledcWrite(PIN_LED, i);  // Set PWM duty cycle
    delay(10);          // Small delay for visible effect
}

// Fade the LED out (gradually decrease brightness)
for (int i = 255; i > -1; i--) {
    ledcWrite(PIN_LED, i);  // Set PWM duty cycle
    delay(10);          // Small delay for visible effect
}
}

Project 4.2 Meteor Flowing Light

After learning about PWM, we can use it to control LED bar graph and realize a cooler flowing light. The component list, circuit, and hardware are exactly cons istent with the project Flowing Light.

Component List

ESP32-S3-WROOM x1
GPIO Extension Board x1
830 Tie-Points Breadboard x1
LED Bar Graph x1
Resistor 220Ω x8
Jumper Wire x8

Connect

Sketch

Upload following sketch: LAFVIN_Super_Starter_Kit_For_Esp32_S3\Sketches\04.2_FlowingLight2

Meteor flowing light will be implemented with PWM.

Download the code to ESP32-S3 WROOM, and LED bar graph will gradually light up and out from left to right, then light up and out from right to left.

Code

The following is the program code:

const byte ledPins[] = {21, 47, 38, 39, 40, 41, 42, 2};  //define led pins
const byte chns[] = {0, 1, 2, 3, 4, 5, 6, 7};  //define the pwm channels
const int dutys[] = {0, 0, 0, 0, 0, 0, 0, 0,
                    1023, 512, 256, 128, 64, 32, 16, 8,
                    0, 0, 0, 0, 0, 0, 0, 0
                    };  //define the pwm dutys
int ledCounts;
int delayTimes = 50;  //flowing speed ,the smaller, the faster
void setup() {
ledCounts = sizeof(ledPins);  //get the led counts
for (int i = 0; i < ledCounts; i++) {  //setup the pwm channels
    ledcAttachChannel(ledPins[i], 1000, 10, chns[i]);
}
}

void loop() {
for (int i = 0; i < 16; i++) {        //flowing one side to other side
    for (int j = 0; j < ledCounts; j++) {
    ledcWrite(ledPins[j], dutys[i + j]);
    }
    delay(delayTimes);
}
for (int i = 0; i < 16; i++) {      //flowing one side to other side
    for (int j = ledCounts - 1; j > -1; j--) {
    ledcWrite(ledPins[j], dutys[i + (ledCounts - 1 - j)]);
    }
    delay(delayTimes);
}
}
