Chapter 14 74HC595 & LED Bar Graph

We have used LED bar graph to make a flowing water light, in which 10 GPIO ports of ESP32-S3 is occupied. More GPIO ports mean that more peripherals can be connected to ESP32-S3, so GPIO resource is very precious. Can we make flowing water light with less GPIO? In this chapter, we will learn a component, 74HC595, which can achieve the target.

Project 14.1 Flowing Water Light

Now let’s learn how to use the 74HC595 IC chip to make a flowing water light using less GPIO.

Component List

  • ESP32-S3-WROOM x1

  • GPIO Extension Board x1

  • 830 Tie-Points Breadboard x1

  • 74HC595 x1

  • Resistor 220Ω x8

  • LED Bar Graph x1

  • Jumper Wire x15

Connect

../_images/14.png

Sketch

In this project, we will make a flowing water light with a 74HC595 chip to learn about its functions.

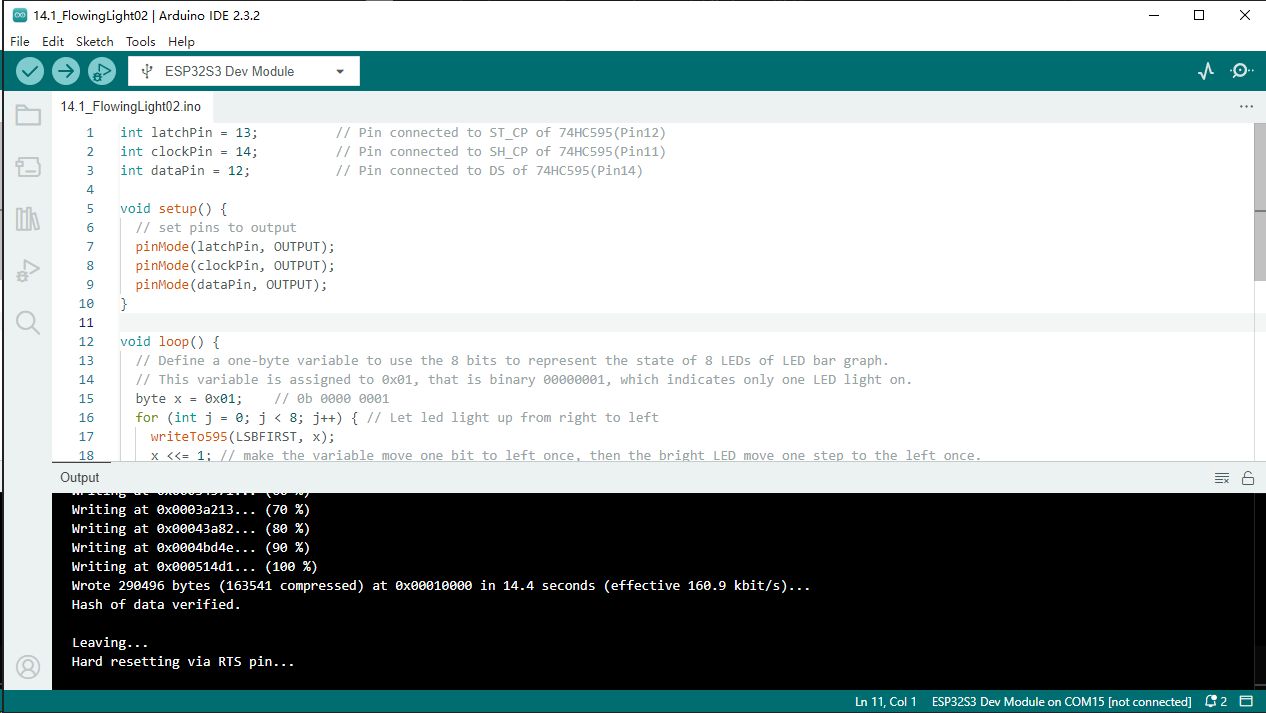

14.1_FlowingLight2

../_images/14.1.png

Download the code to ESP32-S3 WROOM. You will see that LED bar graph starts with the flowing water pattern flashing from left to right and then back from right to left.

Code

The following is the program code:

int latchPin = 13;          // Pin connected to ST_CP of 74HC595(Pin12)
int clockPin = 14;          // Pin connected to SH_CP of 74HC595(Pin11)
int dataPin = 12;           // Pin connected to DS of 74HC595(Pin14)

void setup() {
// set pins to output
pinMode(latchPin, OUTPUT);
pinMode(clockPin, OUTPUT);
pinMode(dataPin, OUTPUT);
}

void loop() {
// Define a one-byte variable to use the 8 bits to represent the state of 8 LEDs of LED bar graph.
// This variable is assigned to 0x01, that is binary 00000001, which indicates only one LED light on.
byte x = 0x01;    // 0b 0000 0001
for (int j = 0; j < 8; j++) { // Let led light up from right to left
    writeTo595(LSBFIRST, x);
    x <<= 1; // make the variable move one bit to left once, then the bright LED move one step to the left once.
    delay(50);
}
delay(100);
x = 0x80;       //0b 1000 0000
for (int j = 0; j < 8; j++) { // Let led light up from left to right
    writeTo595(LSBFIRST, x);
    x >>= 1;
    delay(50);
}
delay(100);
}
void writeTo595(int order, byte _data ) {
// Output low level to latchPin
digitalWrite(latchPin, LOW);
// Send serial data to 74HC595
shiftOut(dataPin, clockPin, order, _data);
// Output high level to latchPin, and 74HC595 will update the data to the parallel output port.
digitalWrite(latchPin, HIGH);
}
