Chapter 16 Relay & Motor

In this chapter, we will learn a kind of special switch module, relay module.

Project 16.1 Control Motor with Potentiometer

Control the direction and speed of the motor with a potentiometer.

Component List

  • ESP32-S3-WROOM x1

  • GPIO Extension Board x1

  • 830 Tie-Points Breadboard x1

  • L293D x1

  • 9V Battery Connector x1

  • Potentiometer(10k) x1

  • Motor & Fan x1

  • Jumper Wire

Connect

Use caution when connecting this circuit, because the DC motor is a high-power component, do not use the power provided by the ESP32-S3 to power the motor directly, which may cause permanent damage to your ESP32-S3! The logic circuit can be powered by the ESP32-S3 power or an external power supply, which should share a common ground with ESP32-S3.

../_images/16.png

Note: the motor circuit uses A large current, about 0.2-0.3A without load.We rec ommend that you use a 9V battery to power the extension board.

Sketch

Sketch_16.1_Control_Motor_by_L293D

../_images/16.1.png

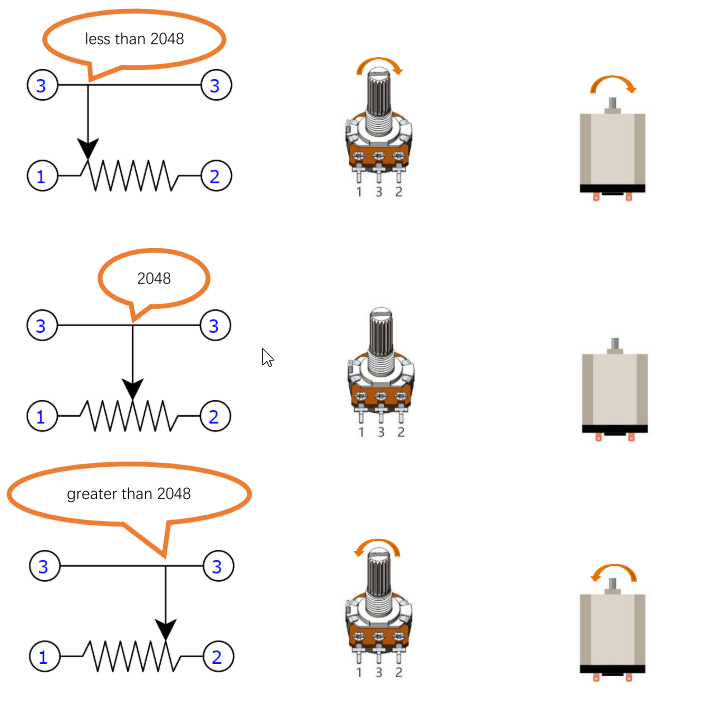

Download code to ESP32-S3 WROOM, Rotate the potentiometer clockwise, and the motor will gradually accelerate and rotate in one direction. Rotate the potentiometer in the opposite direction, and the motor will decelerate, stop, and then rotate in the other direction.

../_images/16.11.png

Code

The following is the program code:

int in1Pin = 13;      // Define L293D channel 1 pin
int in2Pin = 14;      // Define L293D channel 2 pin
int enable1Pin = 12;  // Define L293D enable 1 pin
int channel = 0;

boolean rotationDir;  // Define a variable to save the motor's rotation direction
int rotationSpeed;    // Define a variable to save the motor rotation speed

void setup() {
Serial.begin(115200);
// Initialize the pin into an output mode:
pinMode(in1Pin, OUTPUT);
pinMode(in2Pin, OUTPUT);
pinMode(enable1Pin, OUTPUT);

ledcAttachChannel(enable1Pin, 1000, 11, channel);//Set PWM to 11 bits, range is 0-2047
}

void loop() {
int potenVal = analogRead(A0);      // Convert the voltage of rotary potentiometer into digital
//Compare the number with value 2048,
//if more than 2048, clockwise rotates, otherwise, counter clockwise rotates
rotationSpeed = potenVal - 2048;
if (potenVal > 2048)
    rotationDir = true;
else
    rotationDir = false;
// Calculate the motor speed
rotationSpeed = abs(potenVal - 2048);
//Control the steering and speed of the motor
Serial.println(rotationSpeed);
delay(100);
driveMotor(rotationDir, constrain(rotationSpeed,0,2048));
}

void driveMotor(boolean dir, int spd) {
// Control motor rotation direction
if (dir) {
    digitalWrite(in1Pin, HIGH);
    digitalWrite(in2Pin, LOW);
}
else {
    digitalWrite(in1Pin, LOW);
    digitalWrite(in2Pin, HIGH);
}
// Control motor rotation speed
ledcWrite(enable1Pin, spd);
}
