Chapter 4 Analog & PWM

In previous study, we have known that one button has two states: pressed and released, and LED has lighton/off state, then how to enter a middle state? How to output an intermediate state to let LED “semi bright”? That’s what we’re going to learn. First, let’s learn how to control the brightness of a LED.

Project 4.1 Breathing LED

Breathing light, that is, LED is turned from off to on gradually, and gradually from on to off, just like “breathing”. So, how to control the brightness of a LED? We will use PWM to achieve this target.

Component List

ESP32-S3-WROOM x1
GPIO Extension Board x1
830 Tie-Points Breadboard x1
LED x1
Resistor 220Ω x1
Jumper Wire x2

Connect

This circuit is the same as the one in engineering Blink.

Code

This project is designed to make PWM output GPIO2 with pulse width increasing from 0% to 100%, and then reducing from 100% to 0% gradually. Move the program folder Super_Starter_Kit_for_ESP32_S3/Python/Python_Codes to disk(D) in advance with the path of “D:/Micropython_Codes”. Open “Thonny”， click This computer/D:/Micropython_Codes/04.1_BreatheLight and double click “BreatheLight.py”.

04.1_BreatheLight

Click “Run current script”, and you’ll see that LED is turned from ON to OFF and then back from OFF to ON gradually like breathing.

The following is the program code:

from machine import Pin,PWM
import time

pwm =PWM(Pin(2),10000)
try:
    while True:
        for i in range(0,1023):
            pwm.duty(i)
            time.sleep_ms(1)

        for i in range(0,1023):
            pwm.duty(1023-i)
            time.sleep_ms(1)
except:
    pwm.deinit()

Project 4.2 Meteor Flowing Light

After learning about PWM, we can use it to control LED bar graph and realize a cooler flowing light. The component list, circuit, and hardware are exactly cons istent with the project Flowing Light.

Component List

ESP32-S3-WROOM x1
GPIO Extension Board x1
830 Tie-Points Breadboard x1
LED Bar Graph x1
Resistor 220Ω x8
Jumper Wire x8

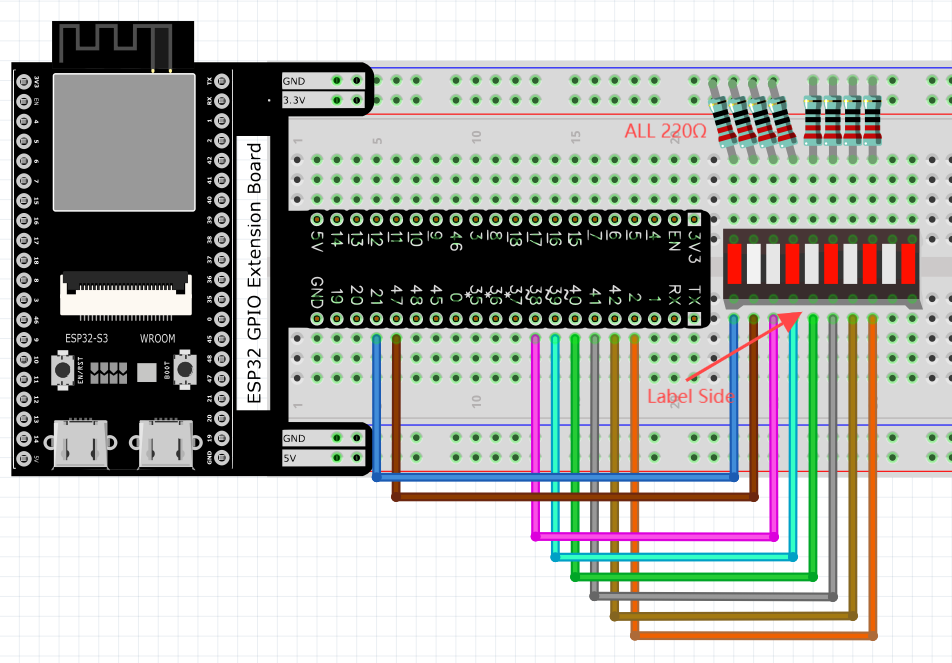

Connect

Code

Flowing Light with tail was implemented with PWM. Open “Thonny”, click This computer/D:/Micropython_Codes/04.2_FlowingLight. Select “pwm.py”, right click to select “Upload to /”, wait for “pwm.py” to be uploaded to ESP32-S3 and then double click “FlowingLight.py”.

04.2_FlowingLight

Click “Run current script”, and LED Bar Graph will gradually light up and out from left to right, then light up and out from right to left.

The following is the program code:

from machine import Pin,PWM
from pwm import myPWM
import time

mypwm = myPWM(21,47,38,39,40,41,42,2)
chns=[0,1,2,3,4,5,6,7];
dutys=[0,0,0,0,0,0,0,0,1023,512,256,128,64,32,16,8,0,0,0,0,0,0,0,0];
delayTimes=50

try:
    while True:
        for i in range(0,16):
            for j in range(0,8):
                mypwm.ledcWrite(chns[j],dutys[i+j])
            time.sleep_ms(delayTimes)

        for i in range(0,16):
            for j in range(0,8):
                mypwm.ledcWrite(chns[7-j],dutys[i+j])
            time.sleep_ms(delayTimes)
except:
    mypwm.deinit()
