Chapter 15 Relay & Motor

In this chapter, we will learn a kind of special switch module, relay module.

Project 15.1 Control Motor with Potentiometer

Control the direction and speed of the motor with a potentiometer.

Component List

  • ESP32-S3-WROOM x1

  • GPIO Extension Board x1

  • 830 Tie-Points Breadboard x1

  • L293D x1

  • 9V Battery Connector x1

  • Potentiometer(10k) x1

  • Motor & Fan x1

  • Jumper Wire

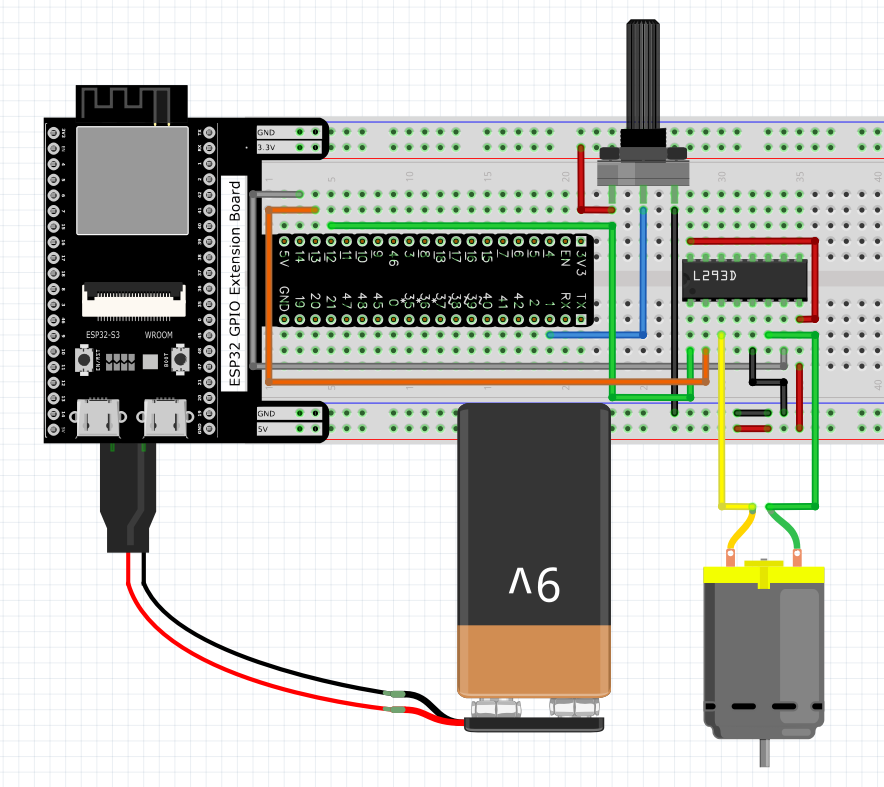

Connect

Use caution when connecting this circuit, because the DC motor is a high-power component, do not use the power provided by the ESP32-S3 to power the motor directly, which may cause permanent damage to your ESP32-S3! The logic circuit can be powered by the ESP32-S3 power or an external power supply, which should share a common ground with ESP32-S3.

../_images/151.png

Note: the motor circuit uses A large current, about 0.2-0.3A without load.We rec ommend that you use a 9V battery to power the extension board.

Code

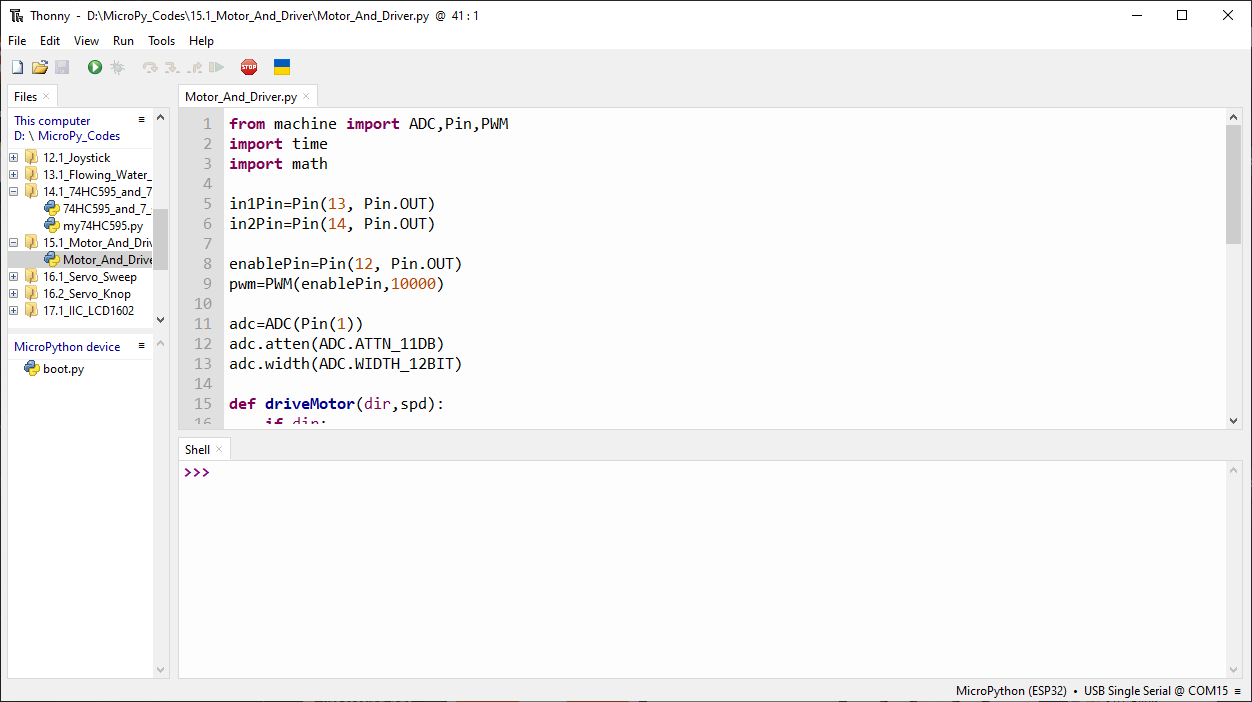

Move the program folder Super_Starter_Kit_for_ESP32_S3/Python/Python_Codes to disk(D) in advance with the path of “D:/Micropython_Codes”. Open “Thonny”, click This computer/D:/Micropython_Codes/15.2_Motor_And_Driver and double click “Motor_And_Driver.py”.

15.1_Motor_And_Driver

../_images/15.12.png

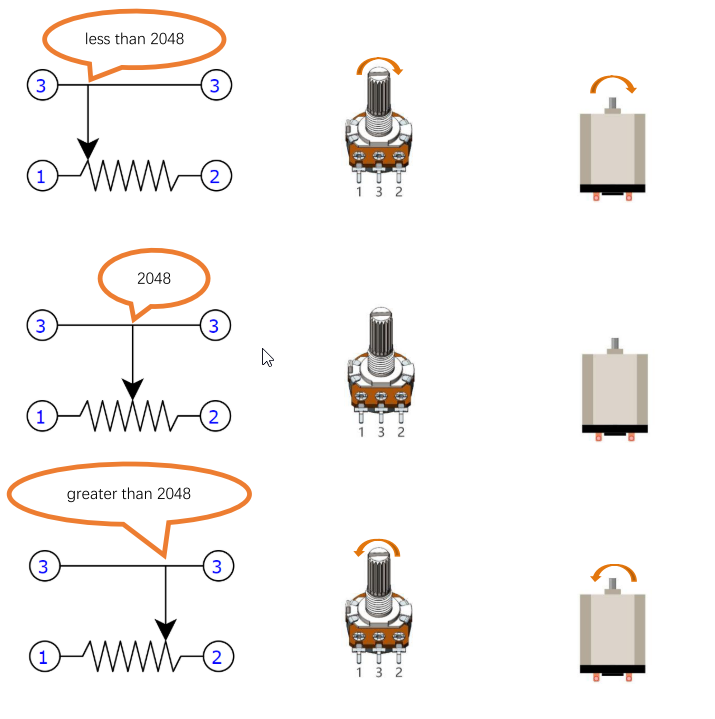

Click “Run current script”, Rotate the potentiometer clockwise, and the motor will gradually accelerate and rotate in one direction. Rotate the potentiometer in the opposite direction, and the motor will decelerate, stop, and then rotate in the other direction.

../_images/15.13.png

Code

The following is the program code:

from machine import ADC,Pin,PWM
import time
import math

in1Pin=Pin(13, Pin.OUT)
in2Pin=Pin(14, Pin.OUT)

enablePin=Pin(12, Pin.OUT)
pwm=PWM(enablePin,10000)

adc=ADC(Pin(1))
adc.atten(ADC.ATTN_11DB)
adc.width(ADC.WIDTH_12BIT)

def driveMotor(dir,spd):
    if dir:
        in1Pin.value(1)
        in2Pin.value(0)
    else :
        in1Pin.value(0)
        in2Pin.value(1)
    pwm.duty(spd)

try:
    while True:
        potenVal = adc.read()
        rotationSpeed = potenVal - 2048
        if (potenVal > 2048):
            rotationDir = 1;
        else:
            rotationDir = 0;
        rotationSpeed=int(math.fabs((potenVal-2047)//2)-1)
        driveMotor(rotationDir,rotationSpeed)
        time.sleep_ms(10)
except:
    pwm.deinit()
