Chapter 11 Thermistor

In this chapter, we will learn about thermistors which are another kind of resistor

Project 11.1 Thermometer

A thermistor is a type of resistor whose resistance value is dependent on temperature and changes in temperature. Therefore, we can take advantage of this characteristic to make a thermometer.

Component List

  • ESP32-S3-WROOM x1

  • GPIO Extension Board x1

  • 830 Tie-Points Breadboard x1

  • Resistor 10kΩ x1

  • Thermistor x1

  • Jumper Wire x3

Component knowledge

Thermistor

Connect

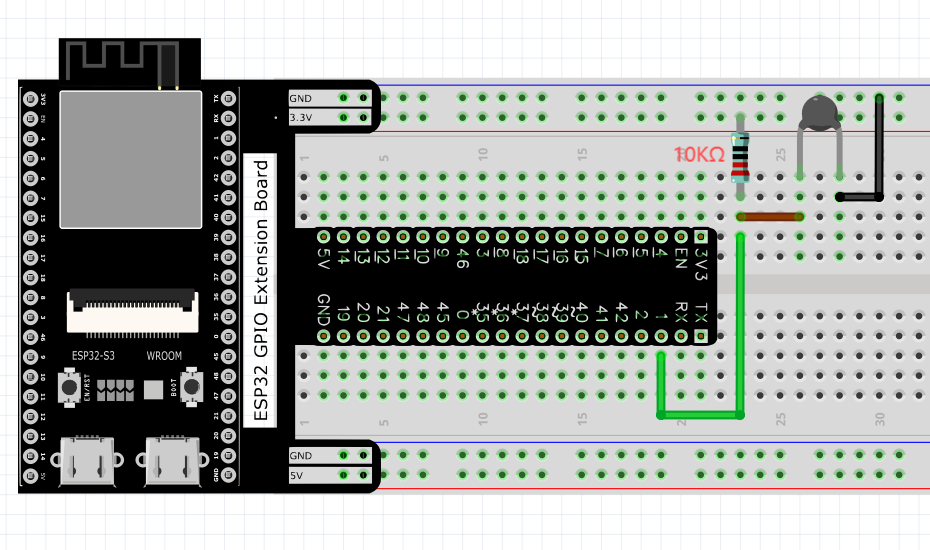

The circuit of this project is similar to the one in the last chapter. The only difference is that the photoresistor is replaced by the thermistor.

../_images/111.png

Code

Move the program folder Super_Starter_Kit_for_ESP32_S3/Python/Python_Codes to disk(D) in advance with the path of “D:/Micropython_Codes”. Open “Thonny”, click This computer/D:/Micropython_Codes/11.1_Thermometer and double click “Thermometer.py”.

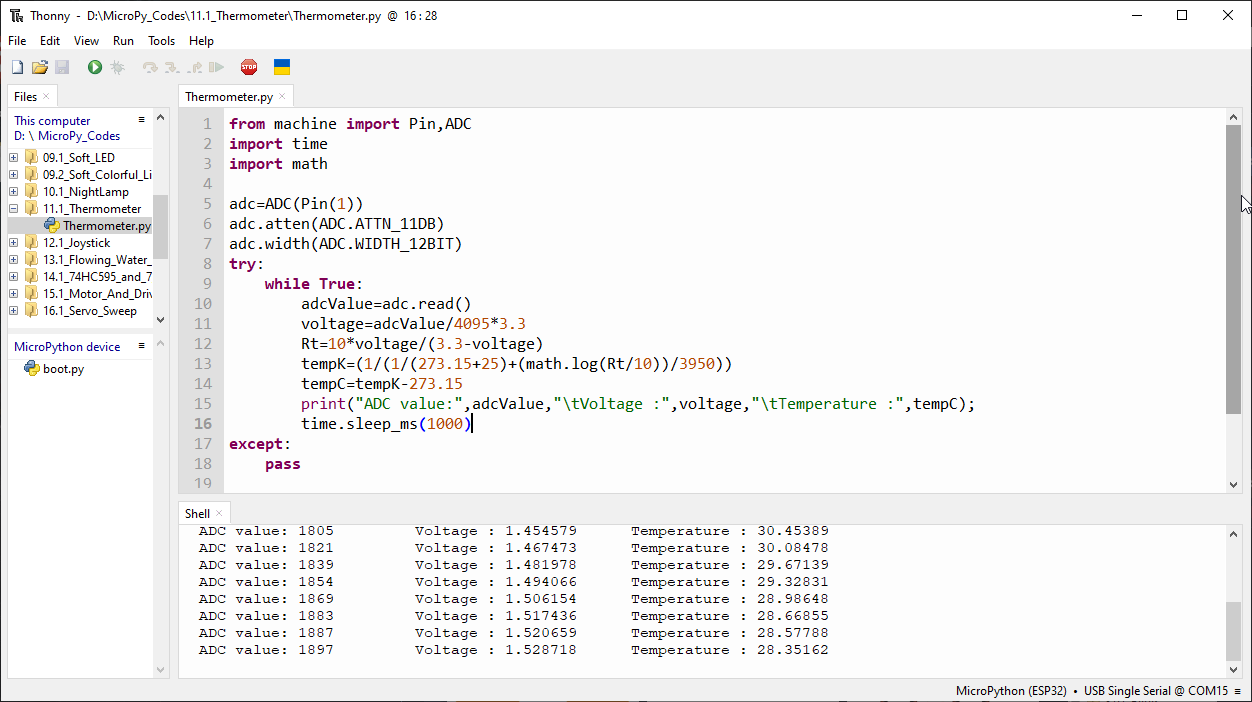

11.1_Thermometer

../_images/11.11.png

Click “Run current script” and “Shell” will constantly display the current ADC value, voltage value and temperature value. Try to “pinch” the thermistor (witho ut touching the leads) with your index finger and thumb for a brief time, you sh ould see that the temperature value increases.

../_images/11.1-1.png

The following is the program code:

from machine import Pin,ADC
import time
import math

adc=ADC(Pin(1))
adc.atten(ADC.ATTN_11DB)
adc.width(ADC.WIDTH_12BIT)
try:
    while True:
        adcValue=adc.read()
        voltage=adcValue/4095*3.3
        Rt=10*voltage/(3.3-voltage)
        tempK=(1/(1/(273.15+25)+(math.log(Rt/10))/3950))
        tempC=tempK-273.15
        print("ADC value:",adcValue,"\tVoltage :",voltage,"\tTemperature :",tempC);
        time.sleep_ms(1000)
except:
    pass
